Unlock the full potential of your AD-plant with TRS.

Revolutionizing thermal recovery solutions through innovative heat pump technology for a greener future.

With our solutions you achieve:

95% reduction of Natural Gas Consumption

Our unique heat-pump technology allows you to almost fully heat your digester without needing to burn fossil fuels.

60% less costs for heating

Our heat-pumps have such a high efficiency that the actual costs for heating the digester can drop with over 60%

Zero Emissions

By using heat-pumps instead of fuel fired boilers you will no longer, have on-site emissions for heating your AD-plant


How does the system work?

Our system utilizes advanced heat pump technology to cool the digestate and extract heat, which is then used to generate hot water at temperatures ranging from 50 to 90 degrees Celsius.

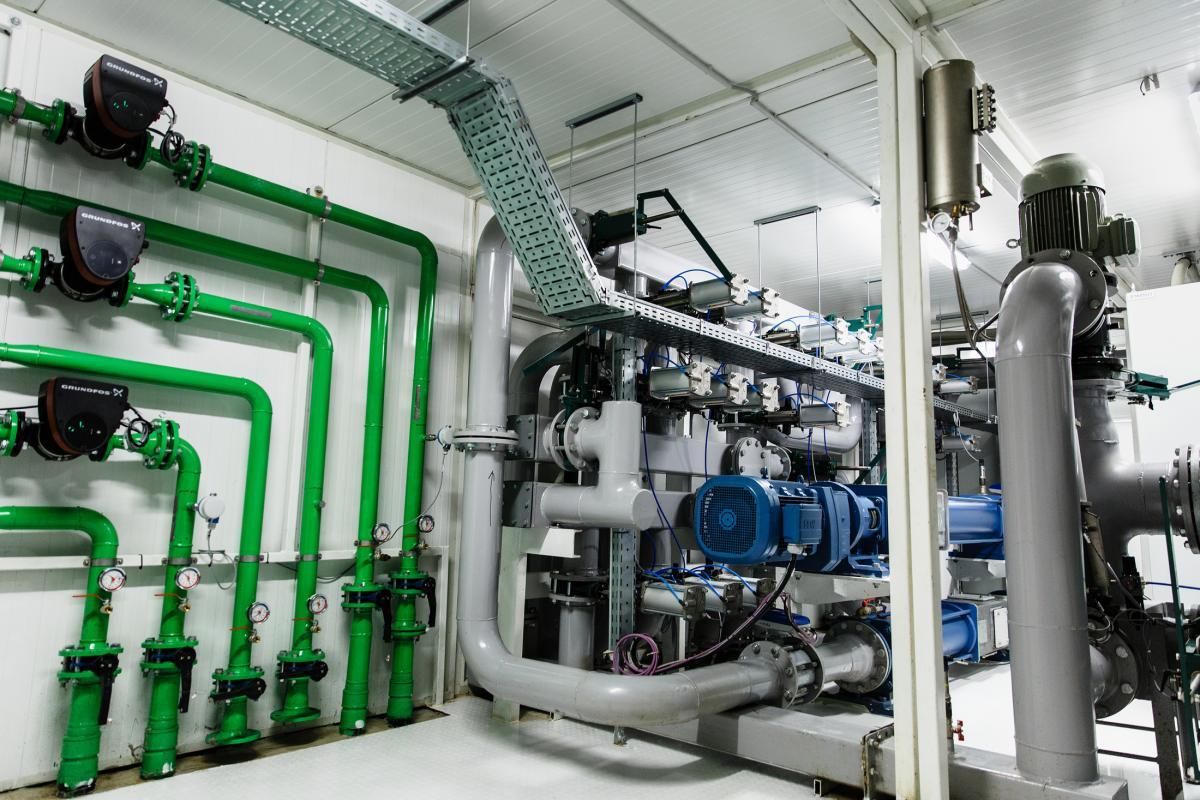

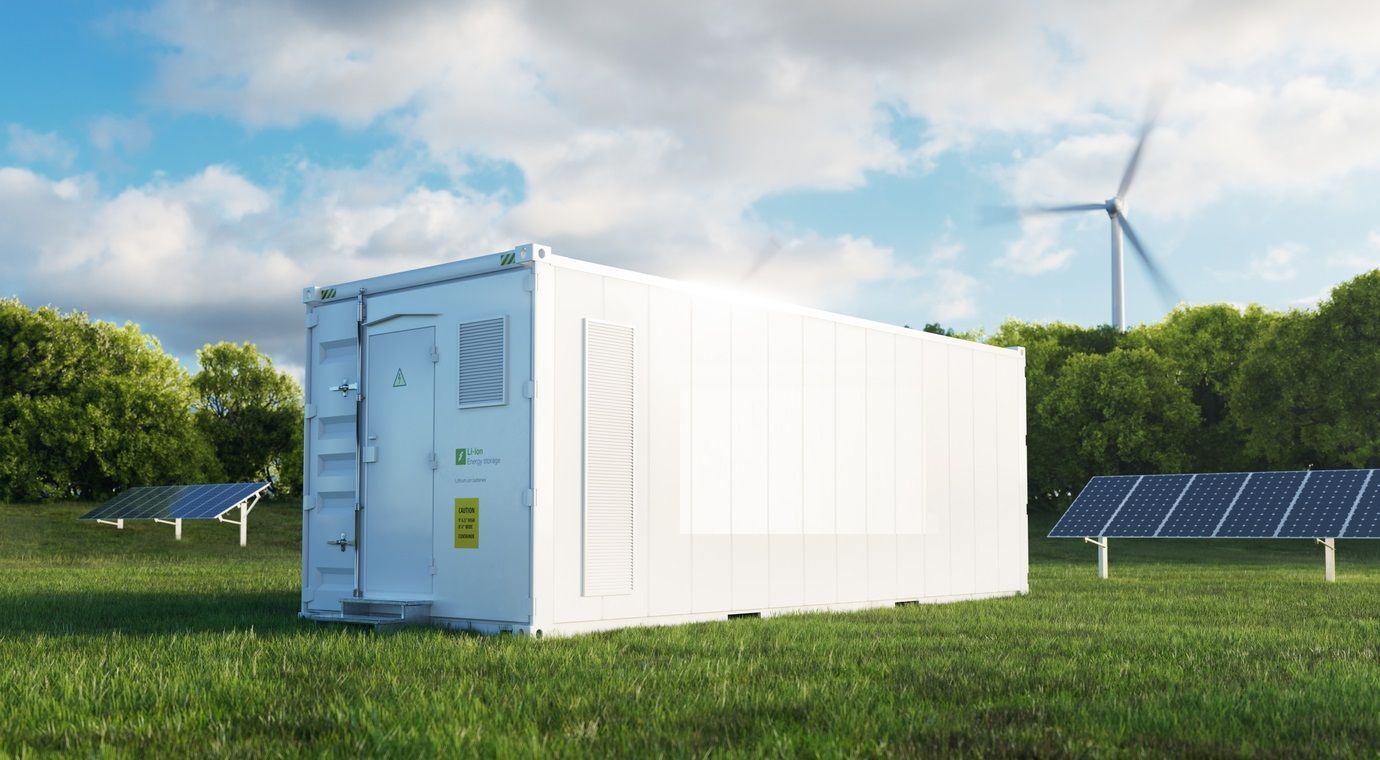

Our heat recovery system consists of modular units that are built in containerized solutions, following a plug-and-play principle. These modular heat pumps are at the core of our system, allowing for scalability and flexibility in meeting the specific requirements of each AD plant.


Below a step to step description is showing how the system works

  • STEP 1

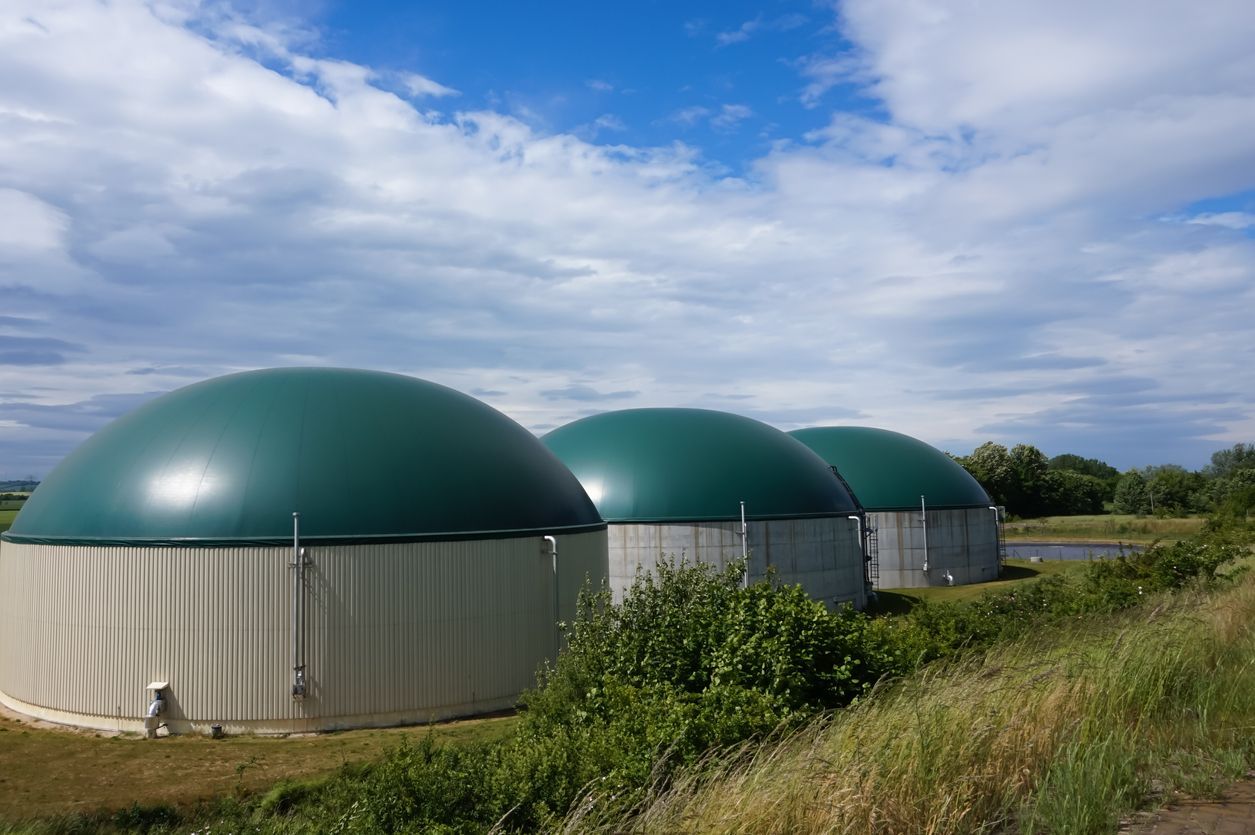

    Anaerobic digesters operate at 35-44 and 50-60 degree C to produce biogas. Once finished, the digestate is removed from the tank. The heat in this streams can be recovered.

    Button

  • STEP 2

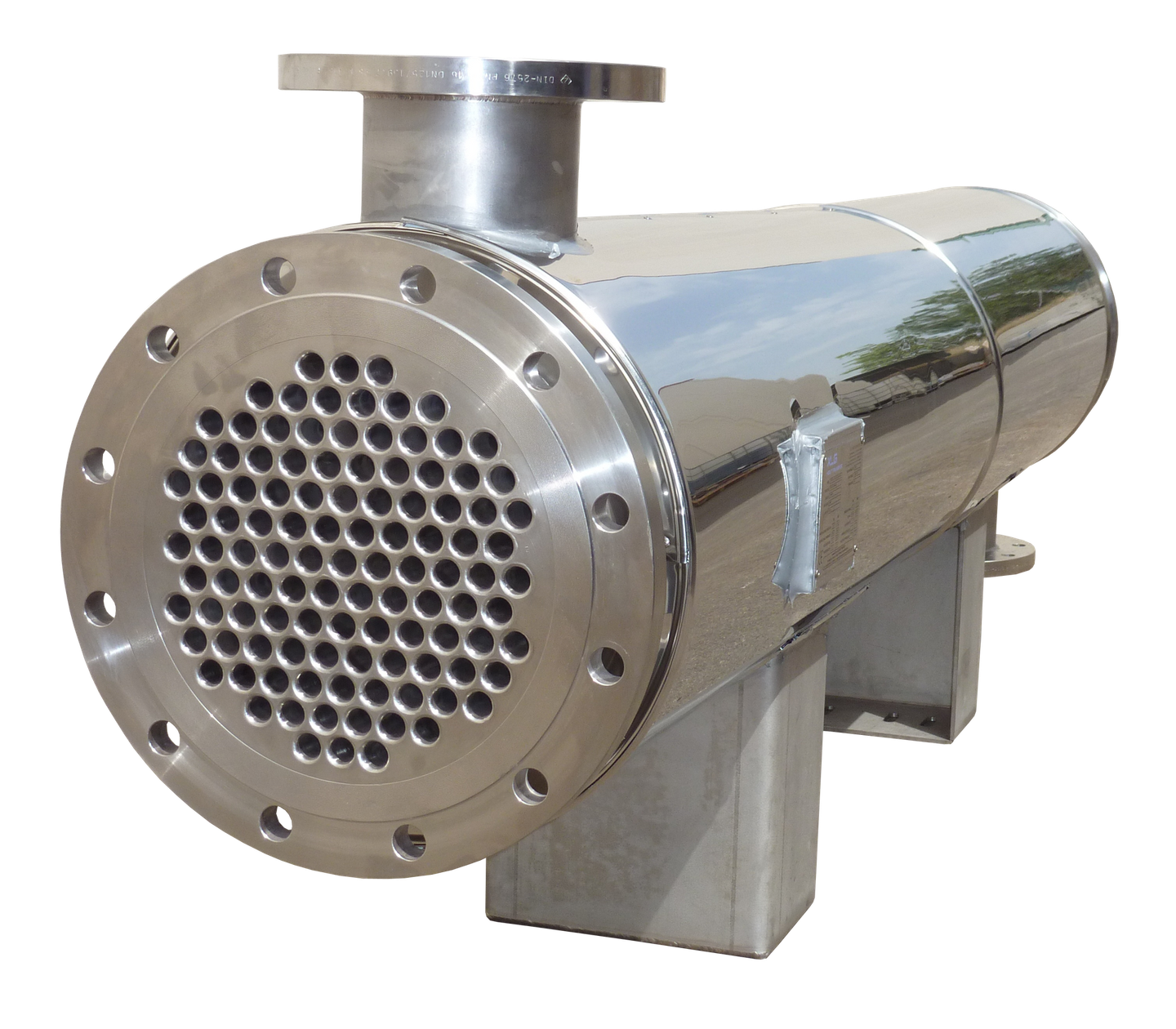

    Cooling the Digestate: The digestate coming from the AD plant is cooled in a special designed heat exchanger.. Two streams can be used in this heat-exchanger:


     1. digestate straight from digester


     2. thin fraction from separator


    The amount of cooling depends on the amount of heat needed at the AD-plant

    Button

  • STEP 3

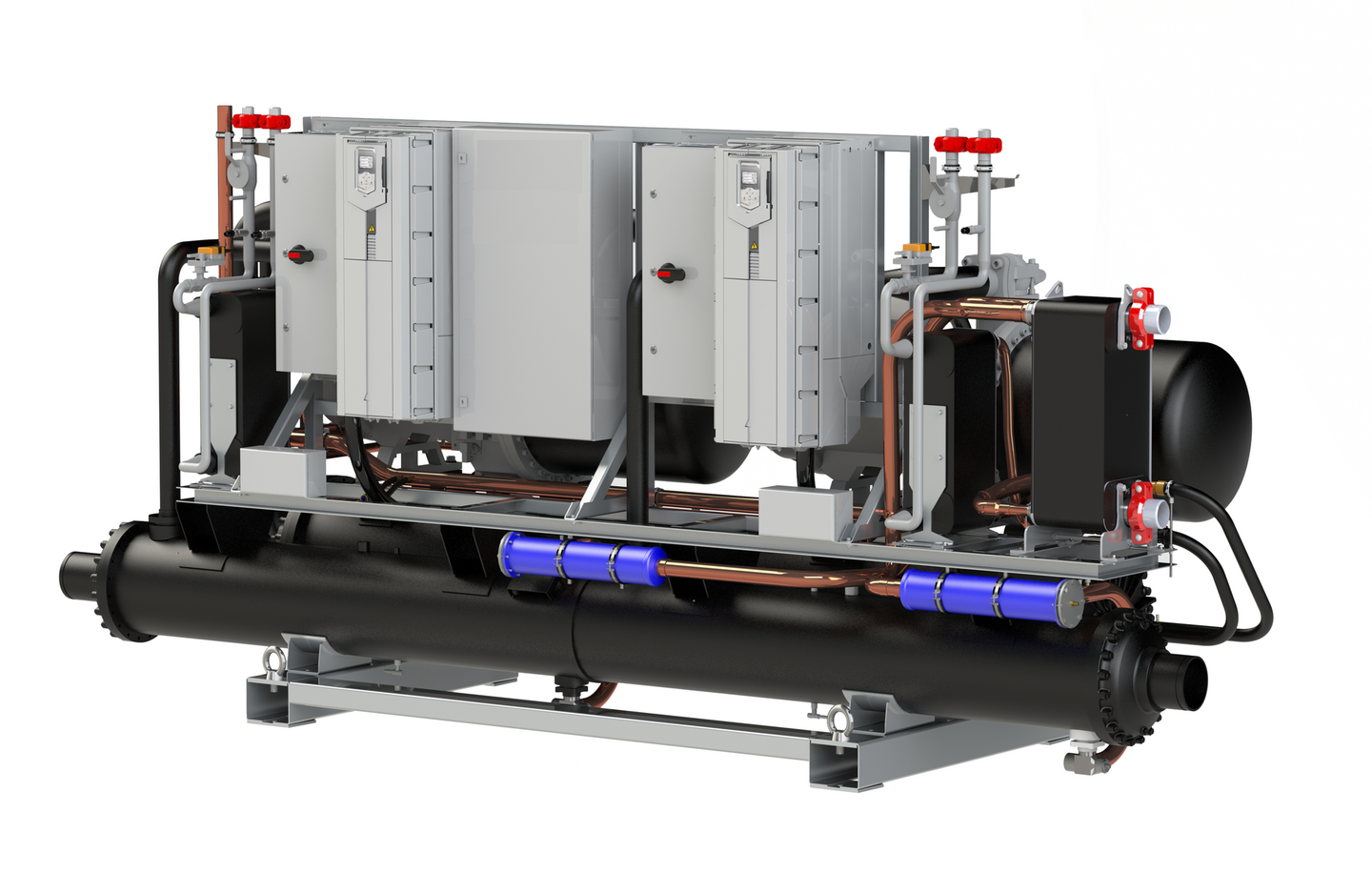

    The absorbed heat is transferred to a heat pump, where it evaporates a refrigerant. The refrigerant is then compressed, which causes the pressure and temperature to increase.


    The refrigerant releases the heat a hot-water stream to the desired temperature of 55-85°C.


    The refrigerants used have a low GWP to assure conformity with the latest and future rules and restrictions

    Button

  • STEP 4

     The hot water, now at the desired temperature , is ready for use. It can be seamlessly integrated into the heating circuit of the AD plant, providing heat for various applications such as digester heating, space heating, or hot water supply.
